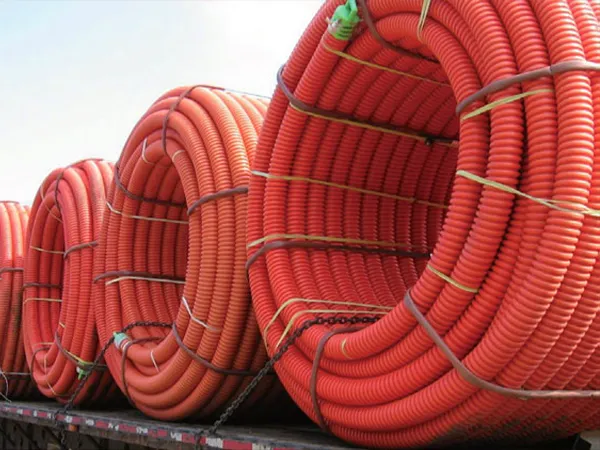

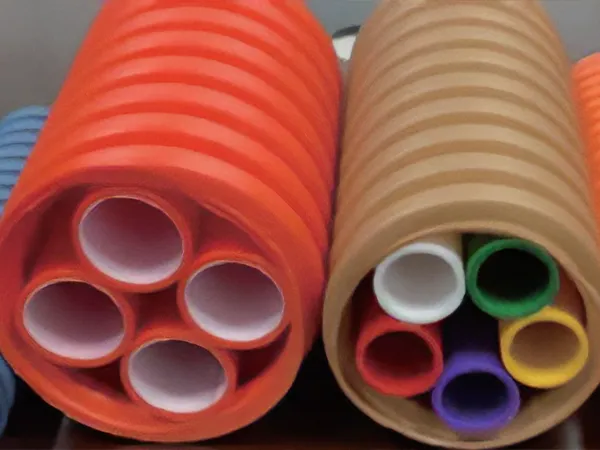

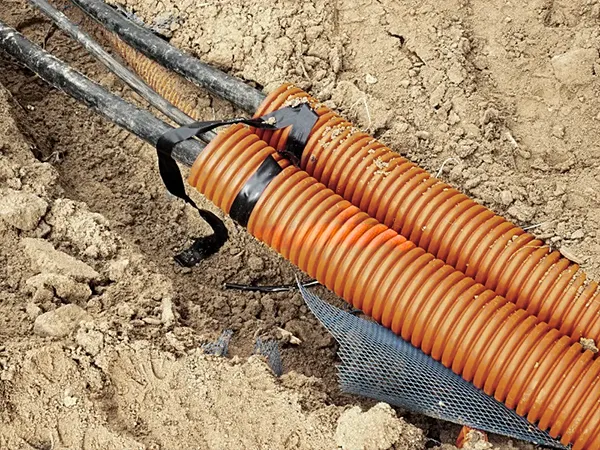

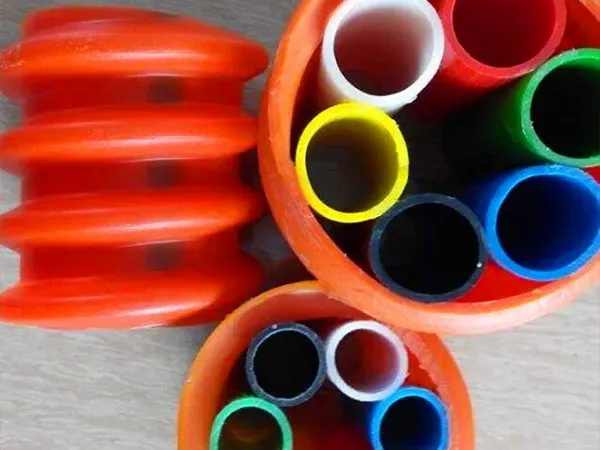

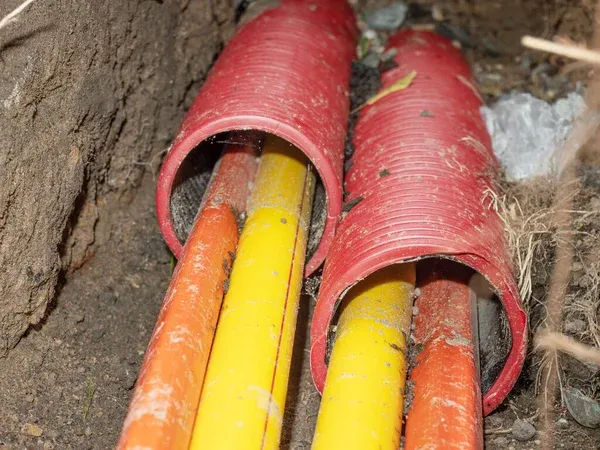

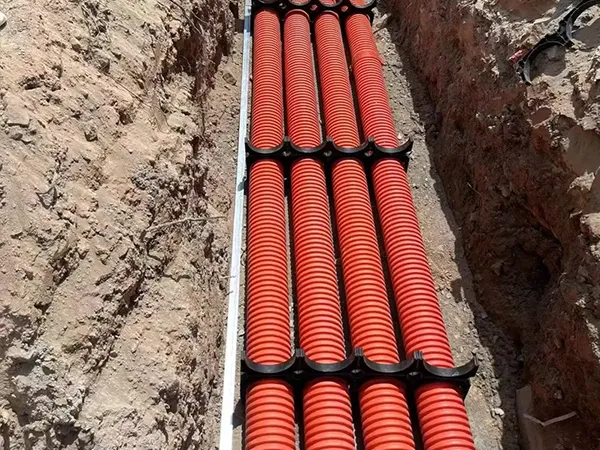

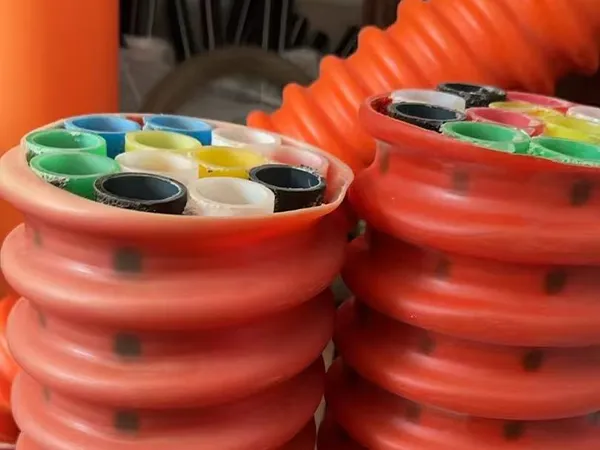

COD bundle pipes play an important role in many fields. In the communications industry, they are used for laying optical cables and cables, protecting lines and achieving orderly wiring, and improving signal transmission stability. In the power industry, they can ensure cable safety and reduce interference from external factors. COD bundle tubes are also suitable for line integration in the field of intelligent transportation to ensure the normal operation of traffic signal systems.

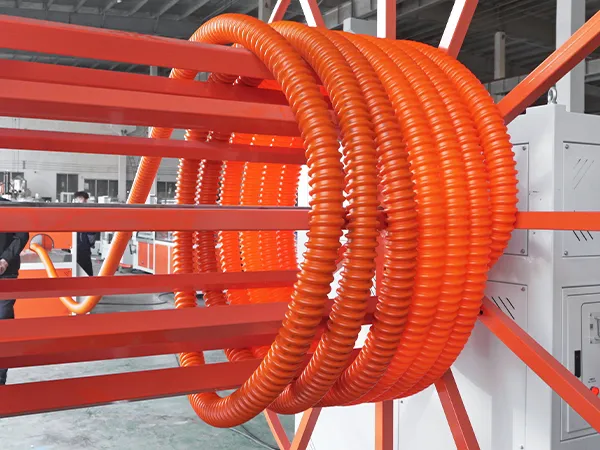

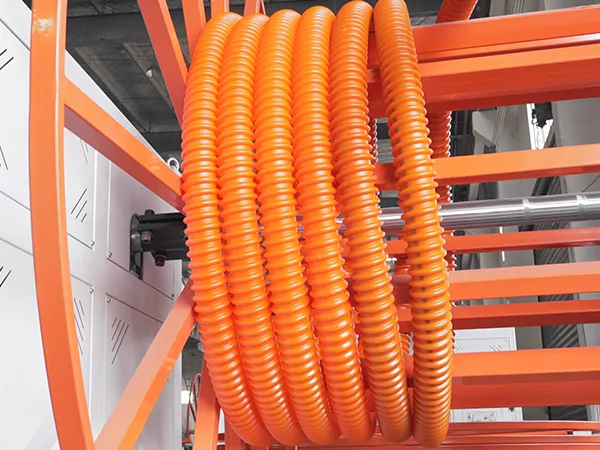

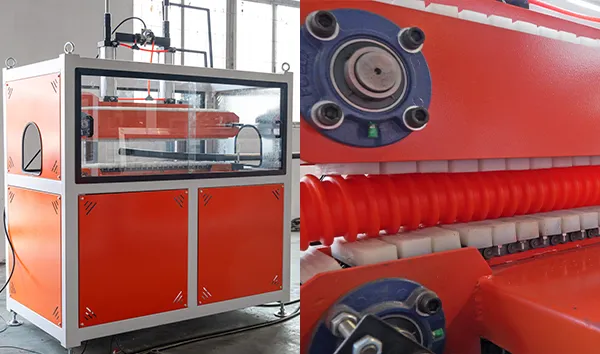

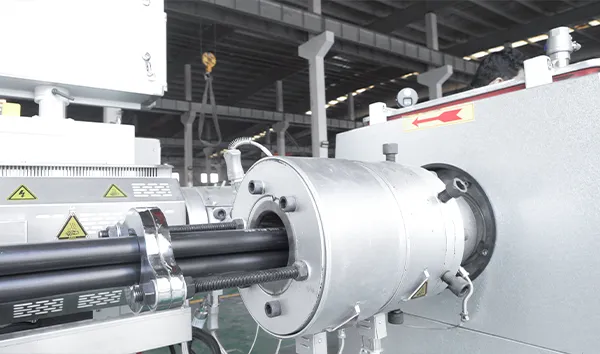

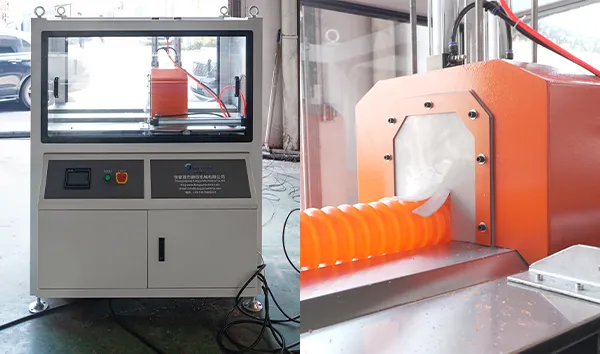

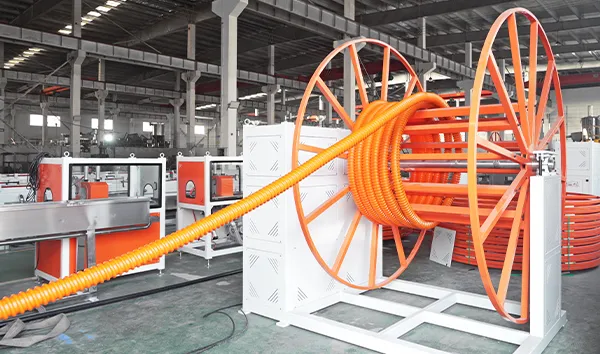

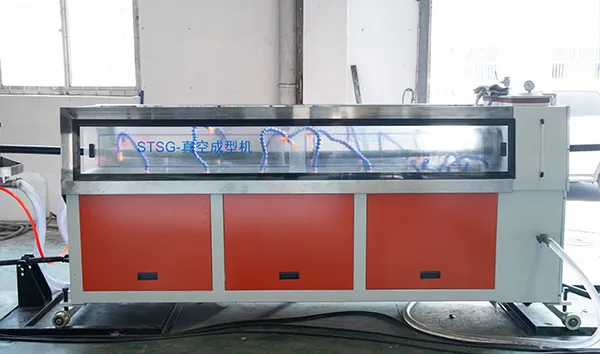

COD cable bundle pipe extrusion production line mainly includes: automatic feeder, SJ-65/30 single screw extruder, coating die, vacuum calibration tank, haul-off machine, cutting machine, winding machine, bundling device, etc.
| Applicable power supply | 380v/3P/60Hz | Operation direction | From right to left |
| Applicable raw materials | PE | Cooling circulating water | ≤20℃ ≥0.3Mpa ～1T/h |
| Product specifications | 110mm | Compressed air | 0.4m3/min ＞0.5MPa |
| Extruder model | SJ-65/30 | Ambient humidity | ≤85% |
| Output | ≥80kg/h | Ambient temperature | 0-40℃ |
| Production line speed | 1.5-2.5m/min | Total installed capacity | 65.5KW |
| Extruder center height | 1000mm | Actual consumption | 40KW |

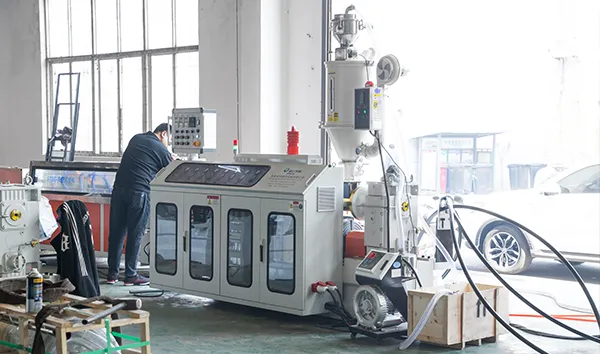

SJ-65/30 single screw extruder adopts optimized screw and new slotted sleeve design, with high plasticization rate, uniform melt, continuous and stable production. High-performance gearbox reducer, large torque, long life, low noise and other characteristics.
