PVC Wall Panel
Extrusion Production Line

PVC wall panel extrusion production line is applications in various industries and sectors where wall panels are in demand. The PVC wall panel extrusion lines are versatile and cater to different market needs. PVC wall panel production line includes several key components: control system, conical twin-screw extruder or parallel twin-screw extruder, calibration unit, haul-off unit, cutter, film covering machine, and stacker.

PVC Wall Panel Extrusion Line Feature:

  • The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary material decreased by 30%.
  • The products made using the PVC wall panel extrusion machine offer a fine appearance and uniform plasticization.
  • Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.

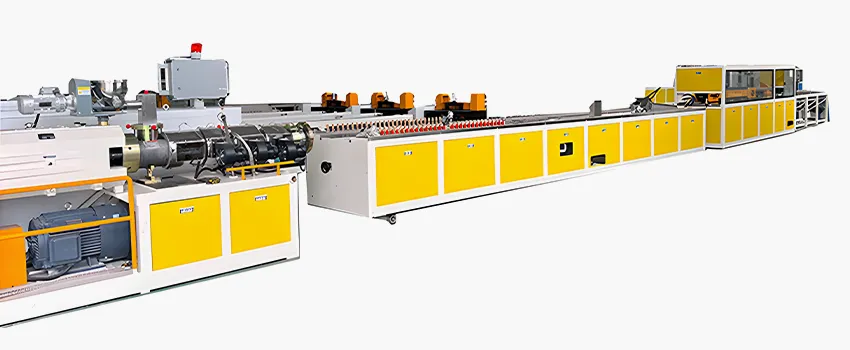

PVC Wall Panel Extrusion Line

PVC Wall Panel Extrusion Line Technical Parameter:

Extruder model Extrude output Main motor power Screw speed Cooling outside the barrel
SJZS 51/105 100-150kg/hour 18.5kw; AC motor 38.4 rpm 400w × 3 wind cooling fan
SJZS 55/110 180-280kg/h 22 kW; AC motor 38.4 rpm 400w × 3 wind cooling fan
SJZS 65/132 300-350 kg/h 37 kW; AC motor 38.4 rpm 550w × 3-wind cooling fan
SJZS 80/156 400-450kg/h 75 kW; AC motor 40 rpm 550w × 5 wind cooling fan
KANGJU MACHINERY

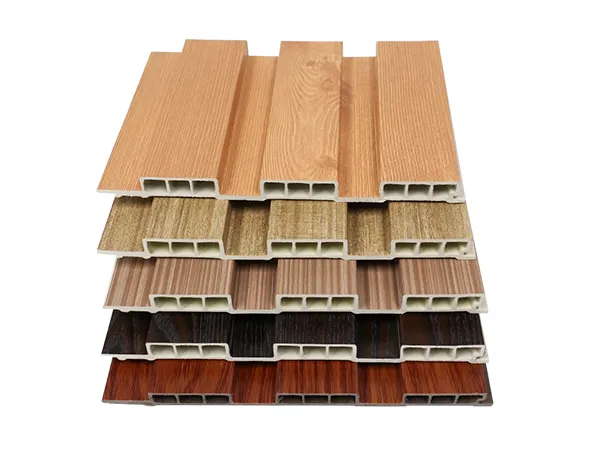

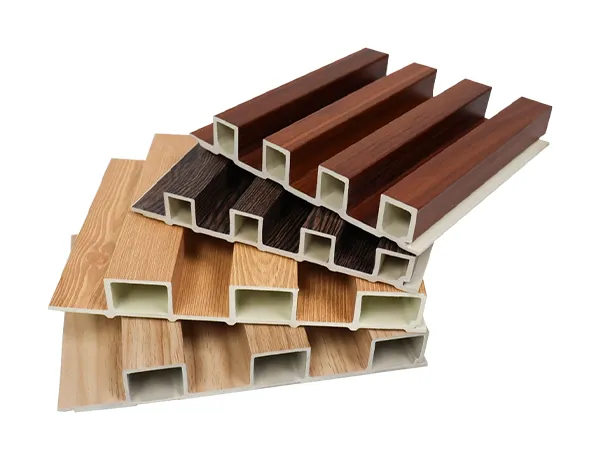

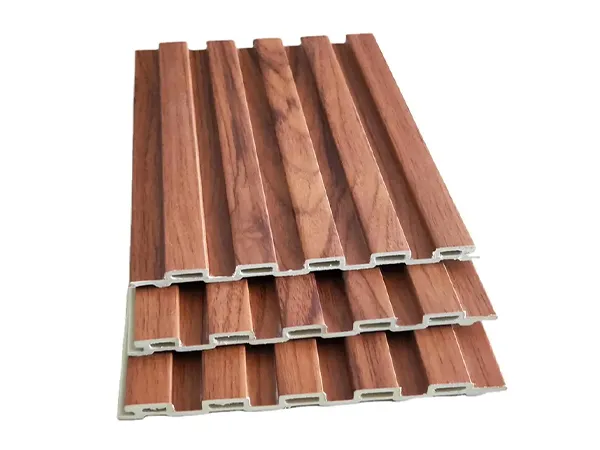

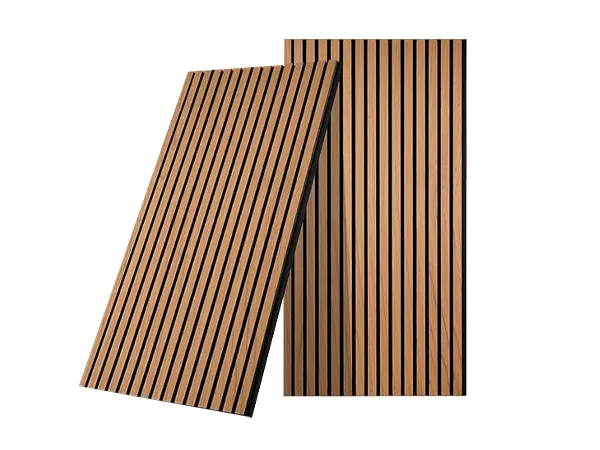

PVC Wall Panel Extruder Final Products

PVC Wall Panel Extruder
PVC Wall Panel Extruder
PVC Wall Panel Extruder
PVC Wall Panel Extruder
KANGJU MACHINERY

PVC Wall Panel Production Line Components

Profile Extruder

Die Head

Calibration Unit

Haul-off Unit

Cutter

PVC Wall Panel Extruder:

  • World famous brand electrical component such as Siemens,Schneider, ABB etc.
  • High torque gearbox with adopts NSK/SKF bearing.
  • Siemens/WEG original motor achieved global after service.
  • Bimetallic screw and barrel.
  • Intelligent PLC controlling system with human-friendly interface.

PVC Profile Extruder

Extrusion Die Head:

  • 3Cr13/3Cr17 material.
  • Complete set include extrusion die head, calibrator and cooling tank.
  • Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.

Extrusion Die Head

Calibration Unit:

  • Include full set of vacuum and water pump.
  • Independent operation panel for easy operation.
Calibration Unit

Haul-off Unit:

  • Drive by coupling and controlled by inverter.
  • Upper cateroilar adopt cylinder flexible pinched to suit for different pipe diameter and keep contact pressure in reason. Lower caterpillar is adjustable electrical as per pipe diameter.
  • Adopt V-shaped rubber bad with high friction factor.
Haul-off Unit

Cutter:

  • Cylinder control moving, non-dust cutting
  • With Photoelectricity device, guarantee cutting accurate
Cutter
KANGJU MACHINERY

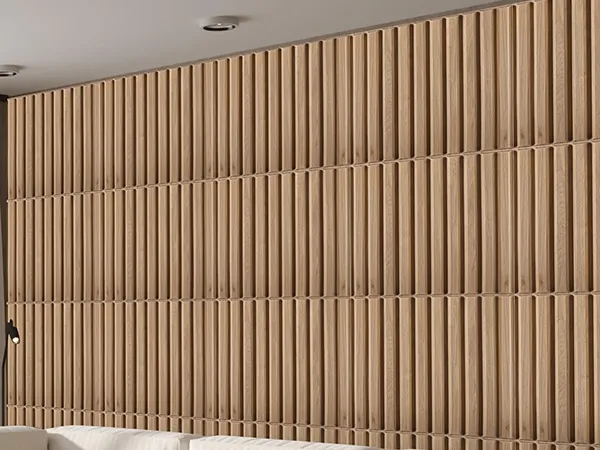

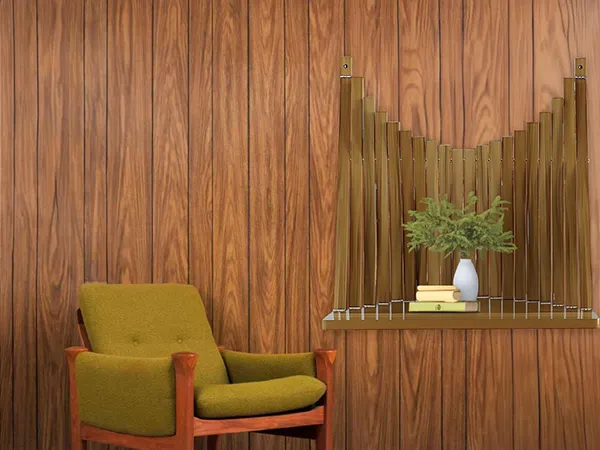

PVC Wall Panel Application

PVC Wall Panel
PVC Wall Panel
PVC Wall Panel
PVC Wall Panel
PVC Wall Panel
PVC Wall Panel
