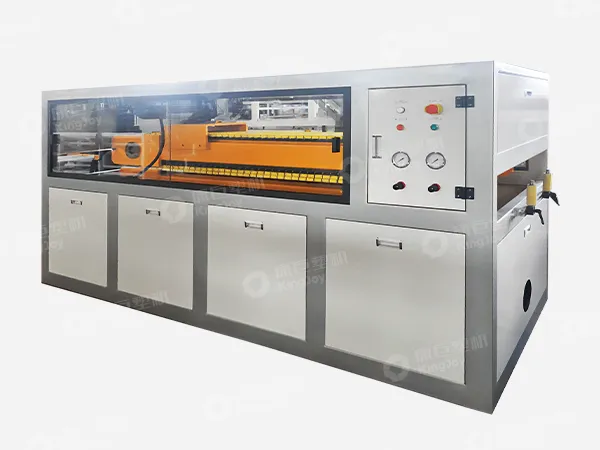

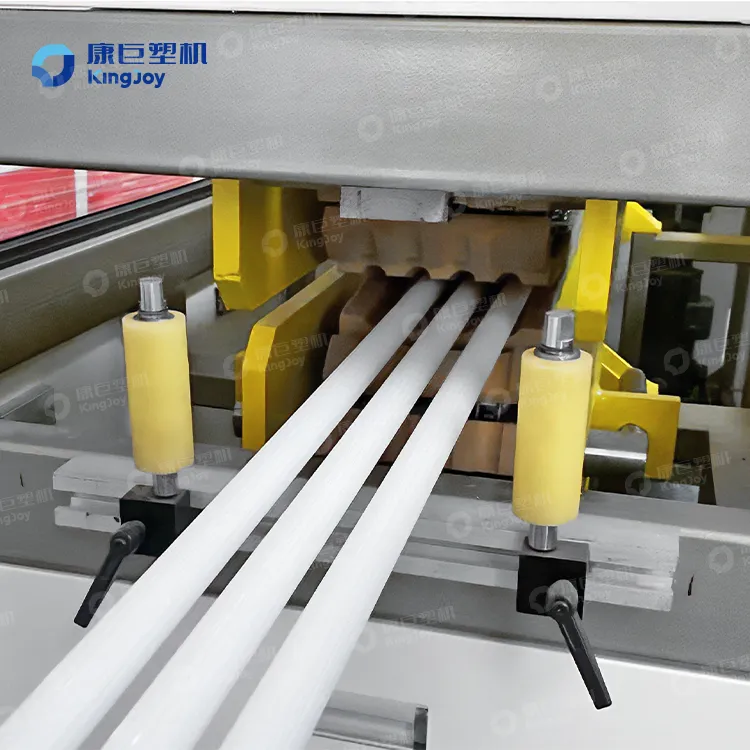

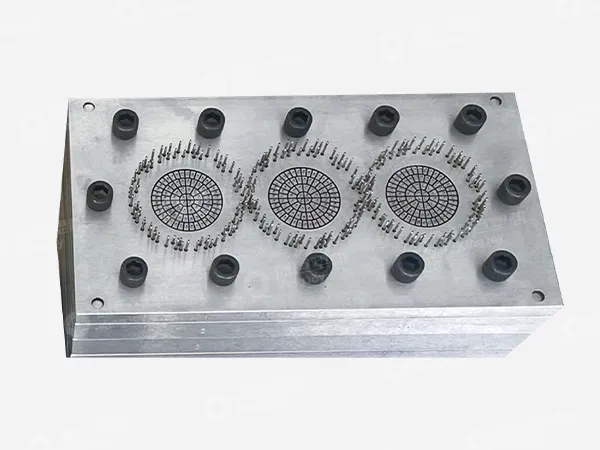

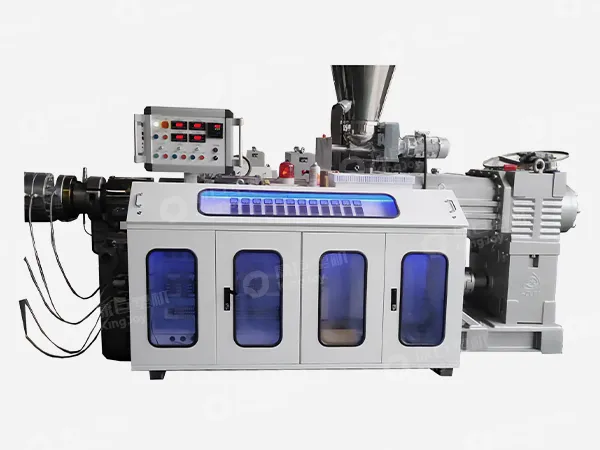

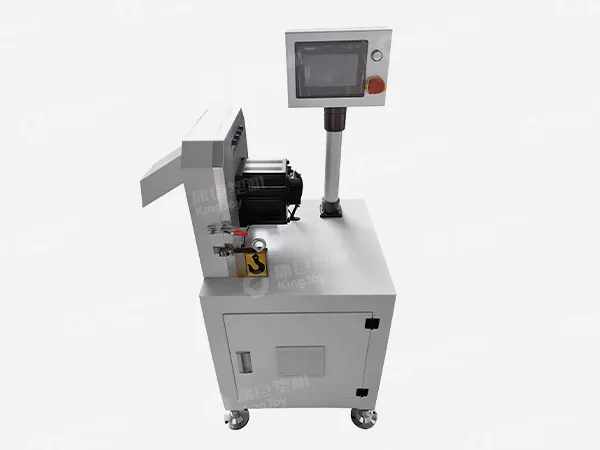

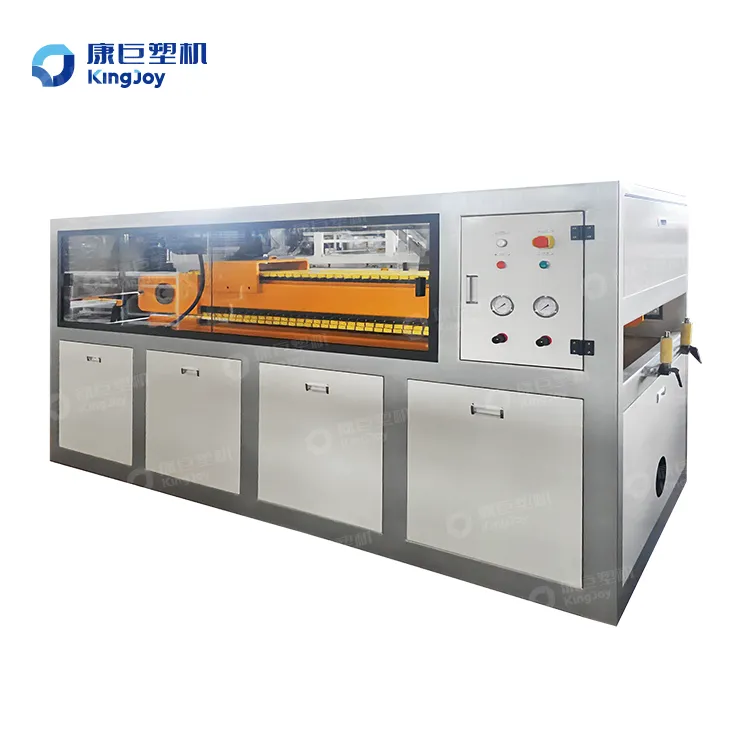

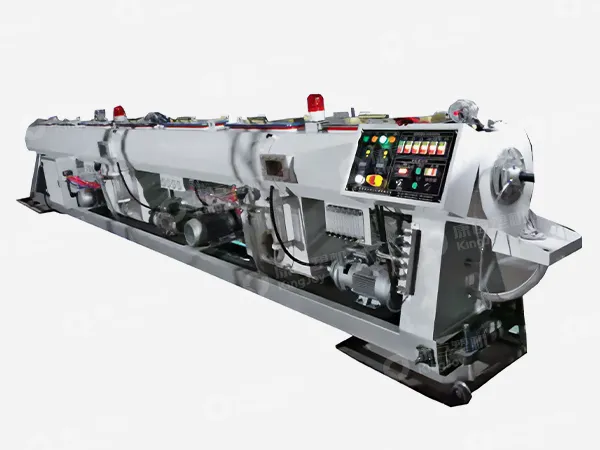

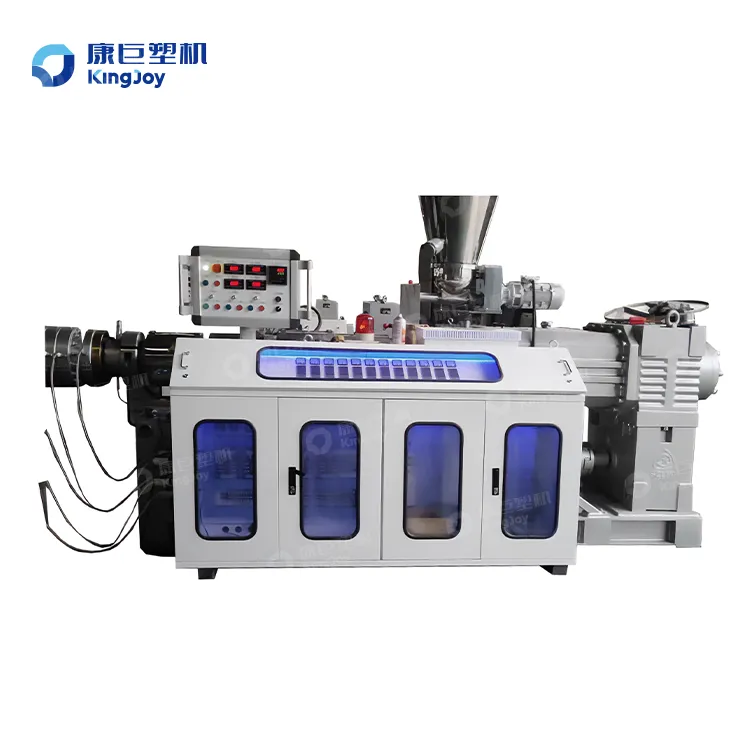

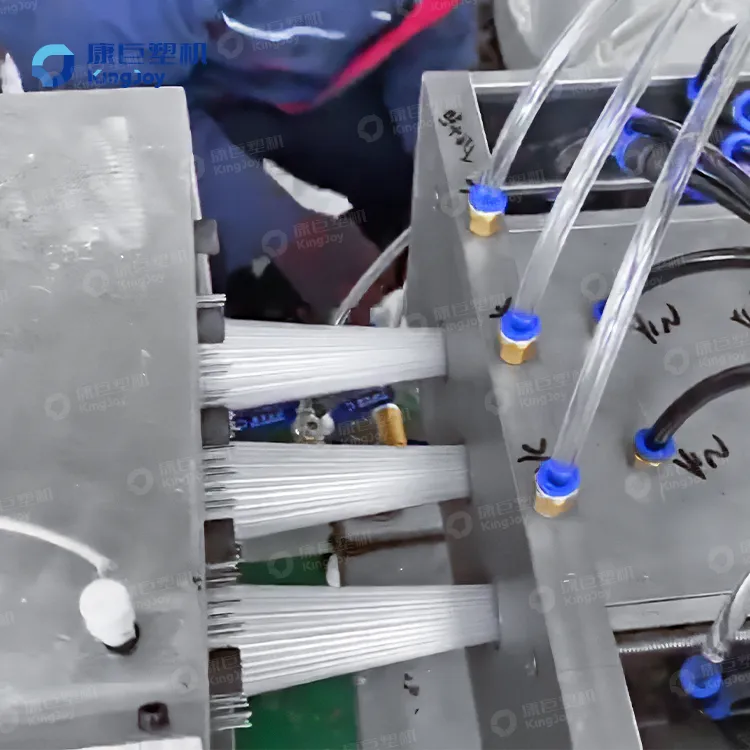

MBBR biological filter media production line is composed by automatic vacuum feeding system, hopper dryer, EC65/33 single screw extruder, three-cavity extrusion mould, vacuum calibrating table (8 meters), haul-off machine, flying cutting machine, etc.
MBBR biological filter media production line is composed by automatic vacuum feeding system, hopper dryer, EC65/33 single screw extruder, three-cavity extrusion mould, vacuum calibrating table (8 meters), haul-off machine, flying cutting machine, etc.
MBBR biological filter media extrusion line is a core equipment specially used for producing polymer biofiller. MBBR biological filter media extrusion line manufactures fillers with high specific surface area and porous structure through extrusion molding process, which is used for microbial attachment and biofilm formation in sewage treatment.

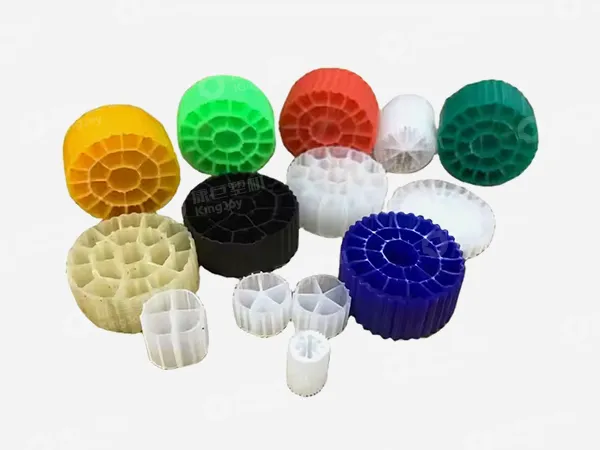

The specific weight of the MBBR carrier is slightly smaller than that of water, and as the attached biofilm grows, the specific gravity becomes larger, making the carrier suspended in the wastewater. The carrier is designed to provide a large protected surface area for biofilms and optimal conditions for bacterial culture. In general, the surface area per cubic meter of the carrier is greater than 500 square meters.
| Applicable raw materials | PE | Production capacity | 80-120kg/h |
| Center height | 1000±50mm | Operation direction | From right to left |
| Machine color | According to customer requirements | Voltage | 380V/50Hz |
| Operating environment | Indoors, power supply non-hazardous area | Cooling water requirements | ≤20℃, ≥0.3MPa |
| Humidity | 85% non-condensing | Compressed air requirements | 1m3/min, ≥0.6MPa |

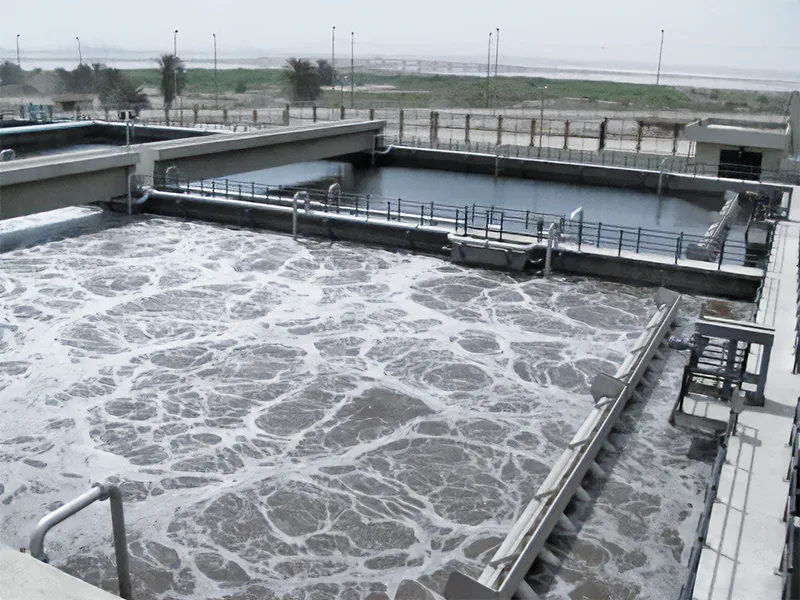

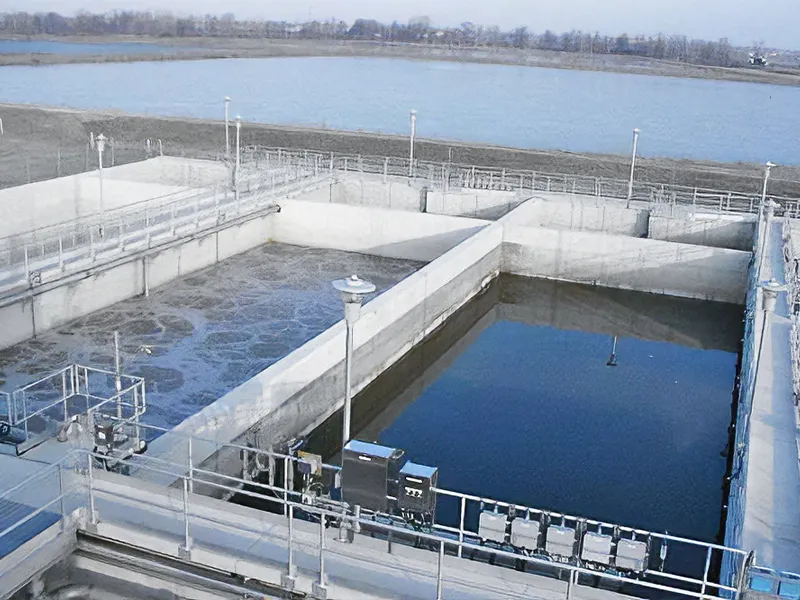

MBBR biological filter medias exhibit remarkable efficiency in eliminating BOD, nitrogen, and ammonia. MBBR biological filter medias are exceptionally well-suited for upgrading and renovating sewage treatment plants, as well as for advanced denitrification processes.
