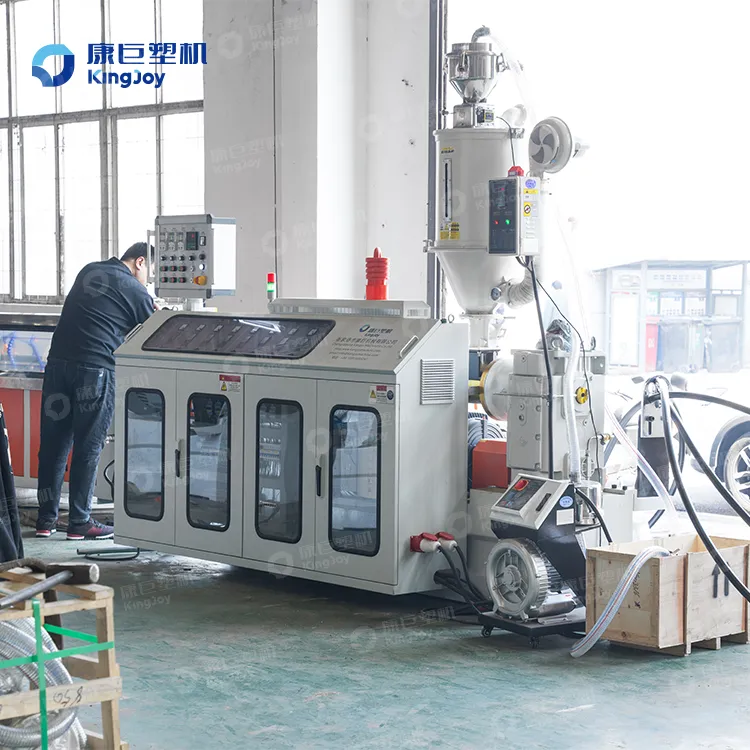

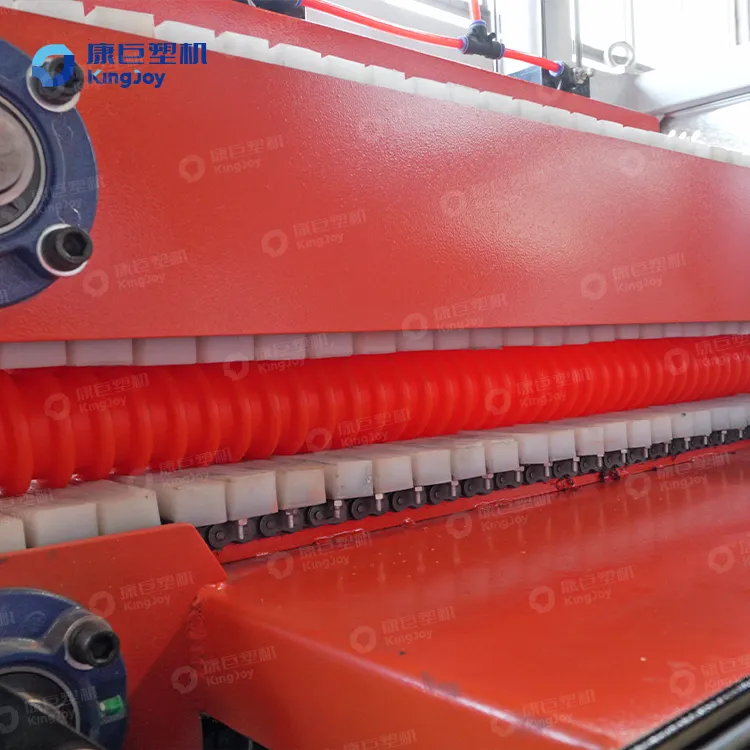

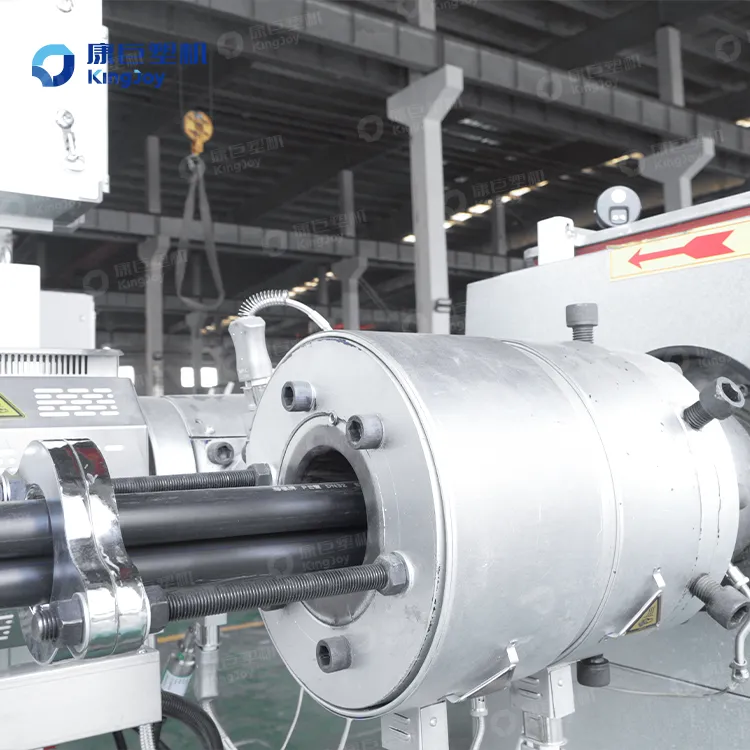

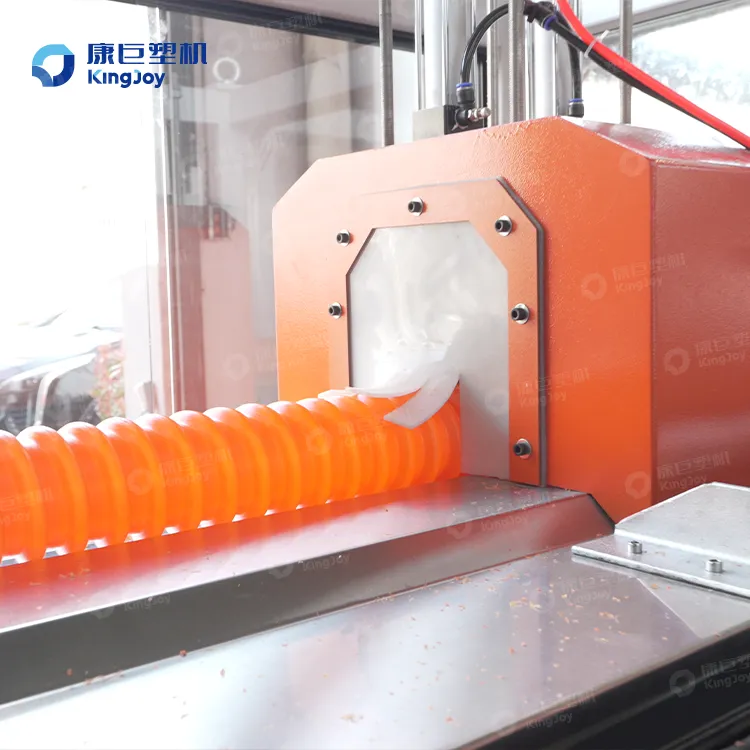

COD bundle pipe production line mainly includes: automatic feeder, SJ-65/30 single screw extruder, coating die, vacuum calibration tank, haul-off machine, cutting machine, winding machine, bundling device, etc.
COD bundle pipe production line mainly includes: automatic feeder, SJ-65/30 single screw extruder, coating die, vacuum calibration tank, haul-off machine, cutting machine, winding machine, bundling device, etc.

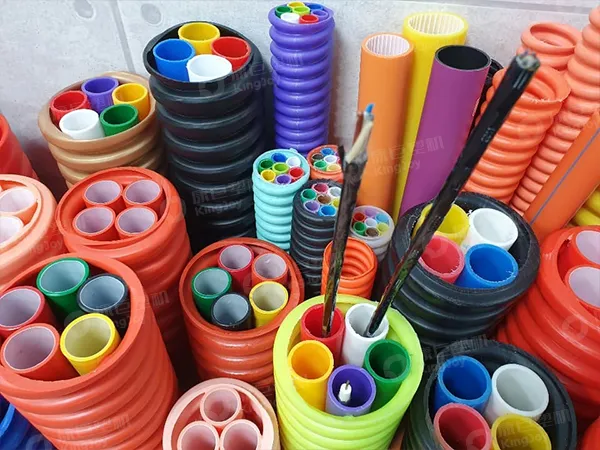

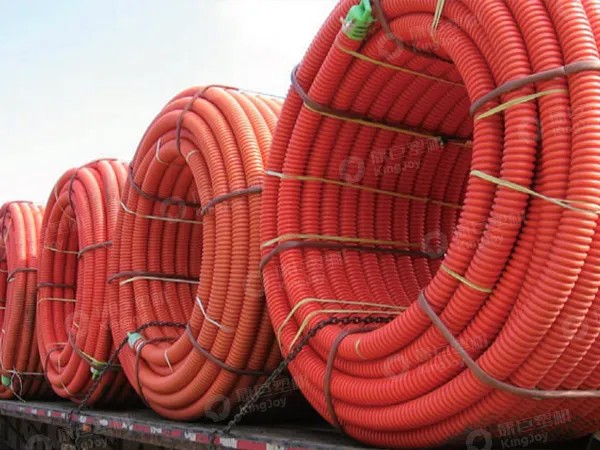

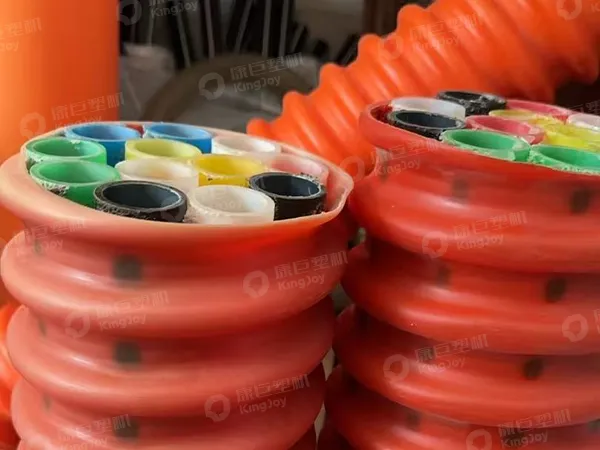

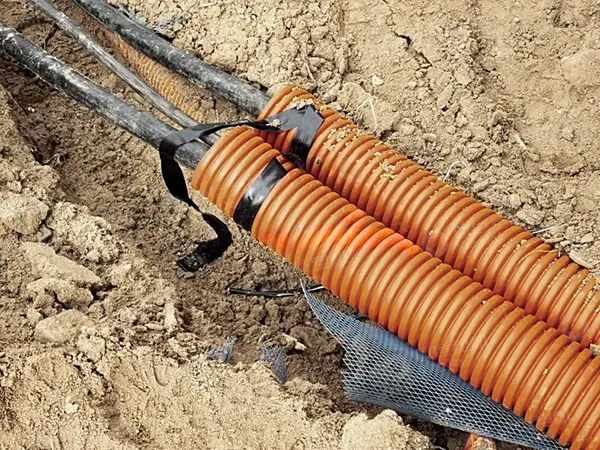

COD bundle pipes play an important role in many fields. In the communications industry, they are used for laying optical cables and cables, protecting lines and achieving orderly wiring, and improving signal transmission stability. In the power industry, they can ensure cable safety and reduce interference from external factors. COD bundle tubes are also suitable for line integration in the field of intelligent transportation to ensure the normal operation of traffic signal systems.
1. Multiple bundle pipes are bundled or welded to form a whole, and the compression, bending and torsion resistance are significantly enhanced, which is suitable for high-load scenarios such as deep-sea pipelines and building supports.
2. When a single tube is damaged, the bundled structure can still maintain some functions (such as the spare pipeline can be switched in oil and gas transportation).
3. Multi-tube bundles reduce the footprint, especially suitable for space-constrained scenarios such as urban underground pipelines and equipment embedded pipelines.
4. COD bundle pipes can transport multiple media (such as oil, gas, and water) at the same time, avoiding repeated laying of pipelines.
5. As a prefabricated unit, the COD bundle pipe can be quickly hoisted and laid, reducing the complexity of on-site construction.
6. During maintenance, the status of multiple pipelines can be checked through a unified inspection port to reduce troubleshooting time.
7. The anti-corrosion design reduces the maintenance frequency, and the comprehensive cost of the COD bundle pipe is better than that of the traditional single pipe.
| Applicable power supply | 380v/3P/60Hz | Operation direction | From right to left |
| Applicable raw materials | PE | Cooling circulating water | ≤20℃ ≥0.3Mpa ～1T/h |
| Product specifications | 110mm | Compressed air | 0.4m3/min ＞0.5MPa |
| Extruder model | SJ-65/30 | Ambient humidity | ≤85% |
| Output | ≥80kg/h | Ambient temperature | 0-40℃ |
| Production line speed | 1.5-2.5m/min | Total installed capacity | 65.5KW |
| Extruder center height | 1000mm | Actual consumption | 40KW |
